H41Y API Forged Steel Flange Check Valve

Product overview

Product model: H41Y
Nominal diameter: NPS1/2"~2"
Nominal pressure: Class150~ 600LB
Operating temperature: 600℃
Applicable medium: water, oil, steam, and gas, some corrosive liquids, etc
Main material: A105N, A182 F22, A182 F304(L), A182 F316(L)
Length: according to ANSI B16.5 F16.5

H41Y API Forged Steel Flange Check Valve product details

H41Y API Forged Steel Flange Check Valve Product Description:

H41Y API Forged Steel Flange Check Valve produced and sold by Baigang valve group disc and seat sealing surface using cobalt-based carbide plasma spray welding hardness, erosion resistance, durability. Apply to the operating temperature of 600 ℃ petroleum, chemical, hydraulic, thermal power plants and other conditions of the pipeline cut off or connected to the media. Suitable media: water, oil, steam, and gas, some corrosive liquids.

H41Y API Forged Steel Flange Check Valve How it works:

Forged steel flange check valve disc, valve seat sealing surface using iron-based alloy or stellite (Stellite) Cobalt-based hard alloy welding surface into a wear-resistant, high temperature, corrosion resistance, abrasion resistance and good service life Long and so on. Stainless steel pin and valve flap with built-in structure - excellent performance - more reliable sealing. Products are widely used in petroleum, chemical, pharmaceutical, power industry and other conditions of pipeline anti-media backflow effect. Suitable medium for water, oil, steam, gas and some corrosive liquid media.

H41Y API Forged Steel Flange Check Valve Features:

1, the guide ribs on the hard alloy surfacing alloy sleeve made of stainless steel guide to ensure flexible action.

2, the valve disc and seat sealing surface made of cobalt-based carbide plasma spray hardness, erosion resistance, durable.

3, advanced pressure seal design and high purity graphite gasket ring to ensure high air tightness.

4, the valve cavity with self-tight pressure seal structure, the higher the pressure within the cavity sealing performance.

5, the valve flap around the valve seat outside the rotation, reducing the violent impact occurred when closed.

H41Y API Forged Steel Flange Check Valve standard material list

Serial number	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
Serial number	Part Name	Type A105N	Type F22	Type F304 (L)	Type F316 (L)
1	Body	A105N	A182 F22	A182 F304 (L)	A182 F316 (L)
2	Nameplate	SS
3	Disc	A276 420	A276 304	A276 304 (L)	A276 316 (L)
4	cap	A105N	A182 F22	A182 F304 (L)	A182 F316 (L)
5	Gasket	316 clip flexible graphite		316 Clamp PTFE
6	bolt	A193 B7	A193 B16	A193 B8 (M)	A193 B8 (M)
Suitable media		Water, steam, oil and so on	Water, steam, oil and so on	Nitric acid, acetic acid and so on
proper temperature		-29 ° C ~ 425 ° C	-29 ° C ~ 550 ° C	-29 ° C ~ 200 ° C

※ Note: other materials required by customers can also be used. Sealing surface material matching specified by the customer within the code.
CS = carbon steel; AS = alloy steel; SS = stainless steel.

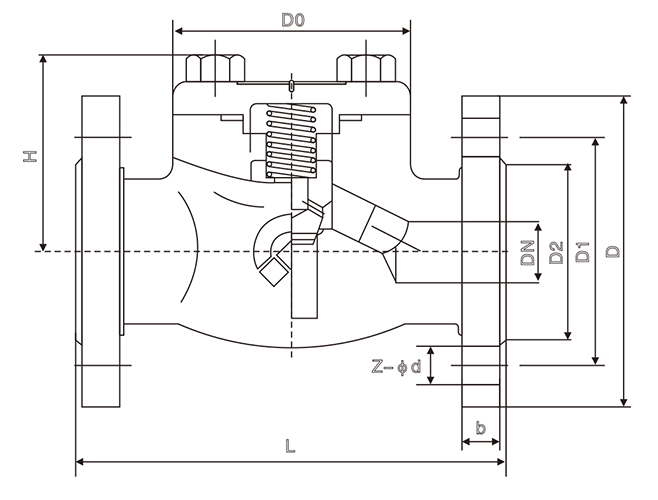

H41Y API Forged Steel Flange Check Valve size (mm) and weight (Kg)

NPS			1/2	3/4	1	1 1/4	1 1/2	2
L (RTJ) L1 (BW)	150		108	117	127	140	165	203
	300		152	178	203	216	229	267
	600		165	190	216	229	241	292
H	150,300		61	61	79	95	103	118
H	600		61	79	95	103	118	135
weight	150	RTJ	2.56	3.37	4.37	8.17	8.94	12.64
	150	BW	1.70	1.90	2.10	5.12	5.50	7.89
	300	RTJ	2.73	3.65	4.74	8.77	9.60	13.70
	300	BW	1.90	2.10	3.00	5.12	6.60	7.85
	600	RTJ	3.00	4.00	5.83	9.47	10.10	15.6
	600	BW	2.00	3.12	4.25	7.25	8.56	13.60

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the H41Y API Forged Steel Flange Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
